INSULATED ROLL UP DOOR

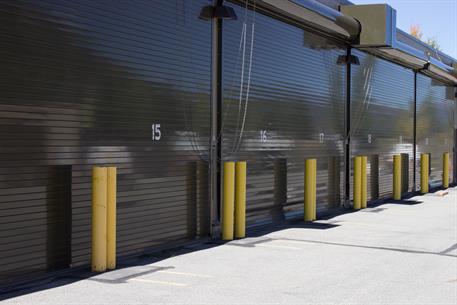

Thermiser Insulated Rolling Doors, designed for exterior use, help maintain different temperatures on each side of the door. They are an ideal choice for use in environments that require climate control, security and durability: distribution, industrial, hospitality, retail and more.
Thermiser doors store compactly, require little to no maintenance and deliver a low life cycle cost. In fact, we warranty this product for 50,000 cycles as standard.
Foamed in place insulation offers superior protection against the elements, improved security and reduced sound transmission. The Thermiser helps seal the building envelope and keeps noise in - or out.
Sound Transmission Class (STC) rating is up to 30 for the curtain and up to 18 for the entire assembly. If an STC of 32 is desired, additional options are required. Please consult the factory for details. All configurations are evaluated per ASTM E90, based on testing a complete, operable assembly.
Download Product BrochureOur Thermiser Insulated Rolling Doors are designed for exterior openings where maintaining different temperatures, (also known as environmental separation) on each side of the door is necessary and/or desirable. The full perimeter seal of these energy-efficient doors also reduces sound transmission compared to non-insulated rolling doors.
Thermiser doors provide all the benefits of our standard rolling doors, plus:
- Climate Control: Our advanced full-perimeter seal and insulated curtains provide impressive reductions in air infiltration and thermal transference
- Security: Our insulated curtain design features two layers of metal with foam in between, making the door stronger and more secure
- Sound Reduction: The Sound Transmission Class (STC) rating is up to 30 for the curtain and up to 18 for the entire assembly, as tested per ASTM E90 (with a complete, operable assembly).
| Gauge | STC Rating |
| 18/24 | 17 |
| 24/24 | 18 |
If a higher STC is required, we also offer the Thermiser Max Insulated Rolling Door. Which offers the following STC ratings:
| Gauge | STC Rating |
| 18/24 | 21 |
| 24/24 | 22 |
| 18/20 | 32* |
*If an STC of 32 is desired, additional options are required. Please consult the factory for details.
Usage
The doors are constructed for daily use and can withstand operation of up to 20 cycles per day – that’s 50,000 cycles for the lifetime of the door.
If your requirements call for more than 20 cycles per day, or 50,000 cycles lifetime, visit our line of High Performance Doors.
Materials and Finishes
Configuration:
Double skin interlocking roll formed interior and exterior metal slats :
- R-value of 8 as calculated using the ASHRAE Handbook of Fundamentals
Slats are filled with 7/8" thick closed cell pressure foamed in place urethane insulation:
- Flame Spread Index of 0
- Smoke Developed Index of 10 as tested per ASTM E84
- CFC-free process with an Ozone Depletion Potential rating of 0
- Meets foam plastic insulation requirements of the 2012 IBC®, section 2603
Slats available in:
Galvanized Steel
Stainless Steel
| Exterior Slat Gauge | Interior Slat Gauge | Finish |
|---|---|---|
| 22 | 22 |
#4 |
Aluminum
| Exterior Slat Gauge | Interior Slat Gauge | Finish |
|---|---|---|
| 22 | 22 |
Mill, Clear, Color Anodized |
Finish/gauge availability varies. Contact us for detailed finish/gauge availability or special requests.
Available Operators
Our doors can open by motor, chain, hand-crank, or push-up operation, depending on size, weight and/or frequency of operation.
- Model MG: A medium duty operator for doors that will cycle no more than 20 times per day
- Model SG: A super duty, full logic operator for larger doors or doors which may periodically cycle more than 20 times per day
Learn more about our operators.
If your requirements call for continuous use and cycles far greater than 20 times per day, consider our line of High Performance Doors.
Aesthetics
AtmoShield™ Powder Coating
Textured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.
Learn More
Chain Diverter for MGH Operators
This option moves the auxiliary chain out of the clear opening and to the side of the door – enabling free movement through the door and making a chain bag unnecessary.
Learn More
Hood and Operator Covers
Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.
SpectraShield™ Powder Coating
Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.
Trim Package
In applications where exterior aesthetics are important, such as hotels, condominiums, convention centers and parking garages, the addition of a trim package can cover unsightly hardware and contribute to the building's architecture.
Vinyl Graphics
Add durable, full-color images to your curtains and hoods. Great for school logos and turning unused door space into profitable sponsorship opportunities in stadiums, amusement parks and retail stores.
Vision Windows
Improve aesthetics and visibility with one- or two-way windows incorporated in the curtain.
Performance Upgrades
High Cycle Springs
Heavy duty springs manufactured to withstand cycles of 100,000.
Seismic Performance Validation
We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.
Safety and Protection
Entrapment Protection Devices
Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.
Guide-Mounted Interlocks
An electrical cutout switch to prevent motor operation if locking device is not first disengaged.
HDBB (Heavy Duty Bottom Bar)
The HDBB is 350% stronger than traditional bottom bars, preventing forklift damage to your Service or Insulated Door. The HDBB can pay for itself after the first impact and significantly reduce future maintenance costs.
RapidResponse
RapidResponse doors are provided with 3' or 6' of extra curtain, an impactable bottom bar and removable lower guide sections. These features allow for faster repair of slat damage, reducing downtime and maximizing the lifetime value of your door.
Rolling Door Protector (RDP)
The RDP eliminates costly fork truck damage to coiling doors by creating a physical barrier at the top of the door that absorbs impacts.
Wind Load
Can be configured to withstand the full range of specific wind load requirements including missile impact ratings.
Unique Design Solutions
Mullions
There are multiple mullion options - corner, fixed and removable.
Pass Doors
Hollow metal man door and hinged frame available within a curtain.
Sloping or Irregular Openings
Our special bottom bar designs can address these conditions.
Superimposed Doors
Combine two different curtains on the same opening. Typically, an insulated door is used in conjunction with an open design rolling grille to provide ventilation. When extreme weather or sound resistance is desired, we can provide superimposed/double insulated curtain assemblies.
Specification Sheets
BIM Objects
Drawing Generator
Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
Codes & Listings
- ISO 9001:2008
- Buy America Compliance
- LEED® Compliance
See Codes and Listings page for detailed information.
LEED Information
Find out more about how Cornell products meet LEED requirements.
