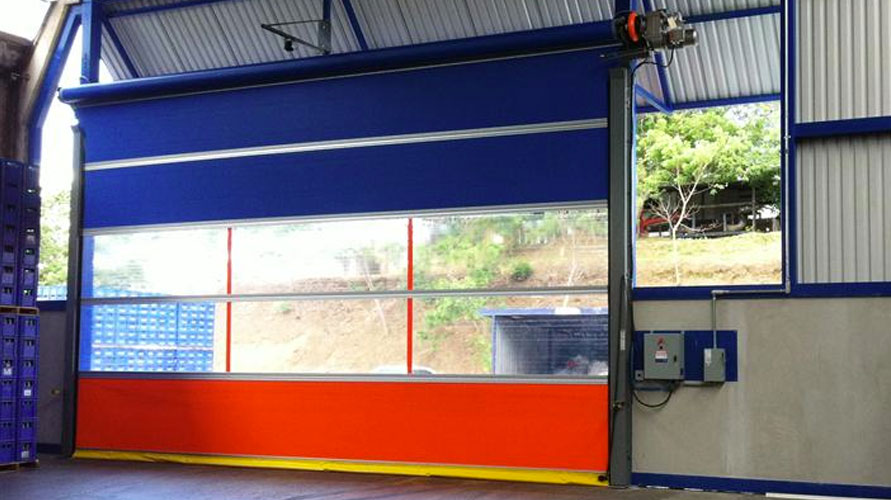

Speed-Master® 2600 L
Contact us about this product
Ideal for Demanding Applications
Demanding industries such as manufacturing, paper mills, steel plants, airports, distribution and transit, that have high cycle door requirements, will benefit from the simple and reliable design of the Speed-Master® 2600 L. Design advantages such as zero moving parts within the guide tracks and direct-drive motor, support minimized maintenance for the walk-away dependability busy operations desire.
Built-in Light Grid and Hinged Guide Tracks
Standard on the Speed-Master® 2600 L is a light grid built into the guide tracks up to 8'0" high. Completely free of coil cords, the light grid provides a thorough wall of protection for personnel and equipment in the doorway, as compared to other doors that use only photocells. The light grid also eliminates the need for a panel reversing edge, which is typically vulnerable to damage, resulting in a reduction in maintenance and downtime. Full perimeter draft seals provide dust and odor containment as well as general environmental control.
Smart Start™ NXT NEMA 4X is Standard
The Speed-Master® 2600 L now includes our next generation Smart Start™ NXT NEMA 4X control box. The updated control box has a simplified wiring configuration, is more powerful, and has fewer components and cables as compared to the original Smart Start™. A distribution block accepts the activation and protection device wiring; main power cables fee through pre-drilled holes on the bottom of the box where the individual wires, with pre-wired removable terminal blocks, simply plug into the circuit board. (Effective April 1, 2017)
Application / Size Range
Exterior or Interior applications:
Up to 24’0" wide x 24’0" high.
Panel
Patented, sectional panel design, made of ultra tough, reinforced, puncture resistant 90 oz. / sq. yd. Bulldog XT material. Panels are connected with heavy duty aluminum hinge profiles.
Vision
Two, full-width vision areas made of high quality PVC are standard. Consult factory for additional vision areas.
Colors
Exterior applications:
Black / Blue / Orange / Grey / White
Operating Speed
Opening:
Up to 36" per second.
Closing:
30" per second.
Guide Tracks
Standard:
Heavy-duty galvanized steel.
Direct-Drive Motor
Compact, self-monitoring direct-drive motor has a patented built-in catch system and is maintenance free.
Control Box
Standard:
Smart Start™ NXT NEMA 4X 3-phase. (Effective April 1, 2017)
Safety Devices
Standard:
8'0" high light grid built into the guide tracks.
Custom Panel Prints
Make an impression with our custom panel prints! Logos, pictures and text may be digitally printed onto our door panels. The images are durable, UV treated and waterproof. The maximum image size is 7'0" wide x 3'0" high.
